MG996R Metal Gear Torque Rc Servo for Futaba JR RC Helicopter Car Boat Robot

Operating Voltage 4.8~6.0V
Rated Voltage 6.0V
Standby Current ≤15mA
No Load Current ≤100mA at 5V ;  ≤110mA at 6V
No Load Speed ≤0.26sec. /60° at 5V ;  ≤0.23sec. /60° at 6V ;
Rated Torque 3.75kgf. cm at 5V ;  4.25kgf. cm at 6V ;
Rated Current 0.65A at 5V ;  0.75A at 6V;
Weighting Torque(dynamic) ≥9.0kgf. cm at 5V ;  ≥11.0kgf. cm at 6V ;
Rotating Direction CCW(500~2500μs)
Pulse Width Range 500~2500μs
Operating Travel Angle 180±10°
Mechanical Limit Angle 220°
Weight 62± 0.5g
Case Material PA66
Gear Set Material Metal
Motor Type Core motor

Product Detail

Product Tags

MG996R Metal Gear Torque Rc Servo for Futaba JR RC Helicopter Car Boat Robot,
MG996R Metal Gear Torque Servo,
DSpower DS-S015M-C servo is a widely used standard servo motor, commonly employed in remote-controlled models, robotics, automation systems, and various mechanical control applications. It is an affordable and reliable servo known for its stable performance, making it suitable for a wide range of projects and uses.

Key Features and Functions:

1. Metal Gear Design: The DS-S015M-C servo features metal gears, providing enhanced durability and strength, allowing it to handle relatively heavy loads and demanding tasks.

2. High Torque Output: With a high torque output capability, the servo excels in applications requiring substantial torque, such as controlling robotic arms or control surfaces.

3. High Precision: Equipped with a precise position feedback mechanism, the DS-S015M-C servo enables accurate position control and steady motion.

4. Wide Operating Voltage Range: This servo typically operates within the range of 4.8V to 7.2V, making it compatible with a variety of power supply systems.

5. Quick Response: The DS-S015M-C servo boasts a rapid response rate, promptly reacting to input signals and making position adjustments.

6. Versatile Applications: Due to its stable performance and cost-effectiveness, the DS-S015M-C servo is suitable for numerous applications, including remote-controlled vehicles, aircraft, robots, servo control systems, camera gimbals, and more.

7. Ease of Control: Controlled through the common pulse-width modulation (PWM) method, the DS-S015M-C servo can be controlled via microcontrollers, remote controllers, or other control devices.

It’s important to note that while the DS-S015M-C servo performs well in many projects, its precision and performance might not be suitable for some high-precision or demanding applications. When selecting a servo, it’s advisable to assess the specific requirements of your project and consider higher-level servos if necessary.

In summary, the DS-S015M-C servo is a dependable and versatile standard servo motor, fitting a range of mechanical control and automation applications, particularly projects where extremely demanding performance requirements are not essential.

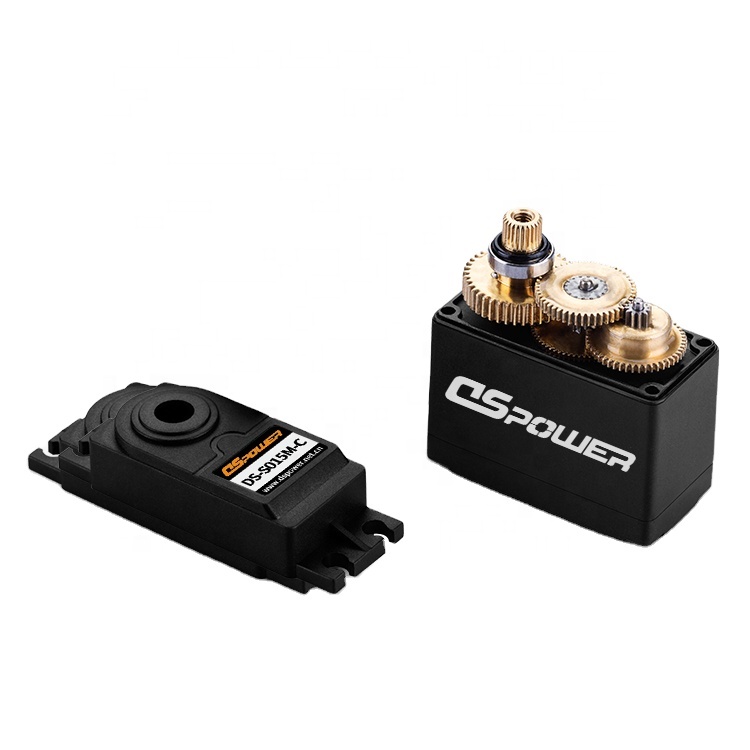

DS-S015M-C 15KG Servo Motor (5)
incon

Features

incon

Application Scenarios

DS-S015M-C servo finds application in various fields and scenarios where precise control of mechanical movement is essential. Its affordability, durability, and decent performance make it a popular choice for a wide range of projects. Some of the common application scenarios for the DS-S015M-C servo include:

Remote-Controlled Vehicles: The DS-S015M-C servo is frequently used in remote-controlled cars, trucks, boats, airplanes, and helicopters to control steering, throttle, brake, and other mechanical functions.

Robotics: It’s suitable for hobbyist robots, educational robotic projects, and even small industrial robots where accurate control of joint movements is required.

Camera Gimbals: The DS-S015M-C servo can be used in camera stabilizers and gimbals to ensure steady and smooth camera movement during filming or photography.

Model Aircraft Control Surfaces: It’s used for controlling ailerons, elevators, rudders, and flaps on model airplanes, enhancing their maneuverability.

RC Boats: The servo can control various functions in remote-controlled boats, such as steering and sail adjustments.

RC Drones and UAVs: In drones and unmanned aerial vehicles (UAVs), the DS-S015M-C servo can control gimbal movement, camera tilt, and other mechanisms.

Educational Projects: The DS-S015M-C servo is commonly used in STEM education projects to teach students about robotics, mechanics, and control systems.

DIY Electronics: Hobbyists often use the DS-S015M-C servo in DIY electronics projects that involve mechanical movement, such as animatronics, automated doors, and other moving devices.

Industrial Prototyping: It can be used in prototyping and testing various mechanical movements in industrial automation or product development.

Art Installations: The servo’s ability to precisely control movement makes it suitable for kinetic art installations and sculptures.

Hobbyist Crafting: Enthusiasts might incorporate the DS-S015M-C servo into crafts involving motion, such as puppetry or kinetic sculptures.

It’s important to note that while the DS-S015M-C servo is versatile and suitable for many applications, its precision and reliability might not meet the demands of critical industrial or high-precision projects. Always assess the servo’s specifications and capabilities to ensure it fits your project’s requirements.

product_3
incon

FAQ

Q: Can I get a free sample?

A: Some servo support free sample, some do not support, please contact with us for more detailed information.

Q: Can I get servo with un-typical case?

A: Yes, we are professional servo manufacturer since 2005, we have exellent R&D team, we can R&D  servo according to customers’ requirements, give you a totally support, we has R&D and manufactured all kinds of servo for many companies so far, like as servo for RC robot, UAV drone, smart home, industrial equipment.

Q: What is your servo’s rotation angle?

A: The rotation angle can be adjusted according to  your  requirements, but it is 180° at default, please do contact with us if you need special rotation angle.

Q: How long can I take my servo?

A: – Order less than 5000pcs, it will take 3-15 business days.
- Order more than 5000pcs, it will take 15-20 business days.DSpower DS-S015M-C servo is a widely used standard servo motor, commonly employed in remote-controlled models, robotics, automation systems, and various mechanical control applications. It is an affordable and reliable servo known for its stable performance, making it suitable for a wide range of projects and uses.

Key Features and Functions:

1. Metal Gear Design: The DS-S015M-C servo features metal gears, providing enhanced durability and strength, allowing it to handle relatively heavy loads and demanding tasks.

2. High Torque Output: With a high torque output capability, the servo excels in applications requiring substantial torque, such as controlling robotic arms or control surfaces.

3. High Precision: Equipped with a precise position feedback mechanism, the DS-S015M-C servo enables accurate position control and steady motion.

4. Wide Operating Voltage Range: This servo typically operates within the range of 4.8V to 7.2V, making it compatible with a variety of power supply systems.

5. Quick Response: The DS-S015M-C servo boasts a rapid response rate, promptly reacting to input signals and making position adjustments.

6. Versatile Applications: Due to its stable performance and cost-effectiveness, the DS-S015M-C servo is suitable for numerous applications, including remote-controlled vehicles, aircraft, robots, servo control systems, camera gimbals, and more.

7. Ease of Control: Controlled through the common pulse-width modulation (PWM) method, the DS-S015M-C servo can be controlled via microcontrollers, remote controllers, or other control devices.

It’s important to note that while the DS-S015M-C servo performs well in many projects, its precision and performance might not be suitable for some high-precision or demanding applications. When selecting a servo, it’s advisable to assess the specific requirements of your project and consider higher-level servos if necessary.

In summary, the DS-S015M-C servo is a dependable and versatile standard servo motor, fitting a range of mechanical control and automation applications, particularly projects where extremely demanding performance requirements are not essential.
