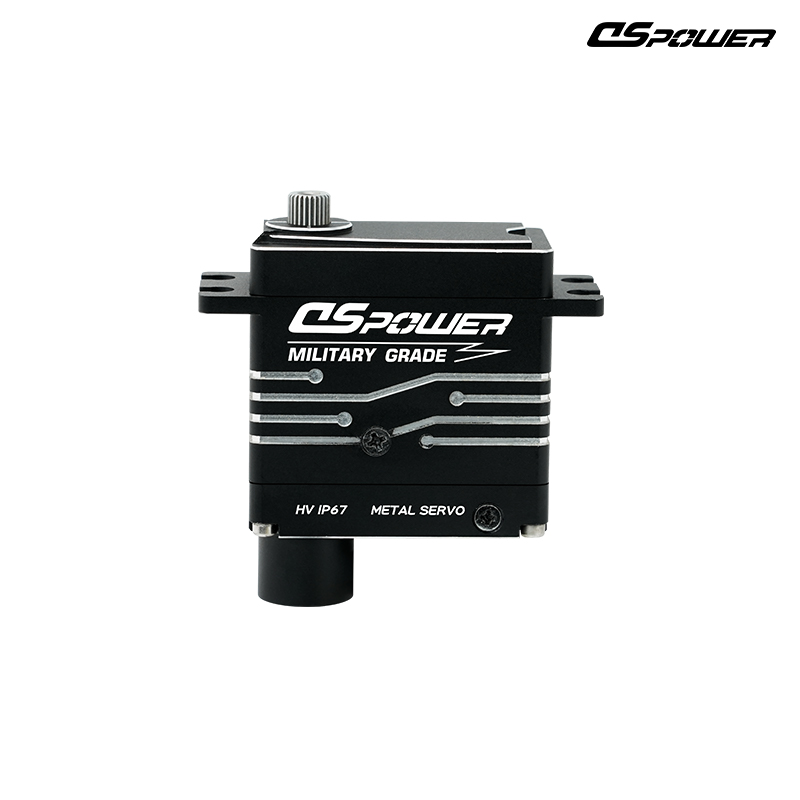

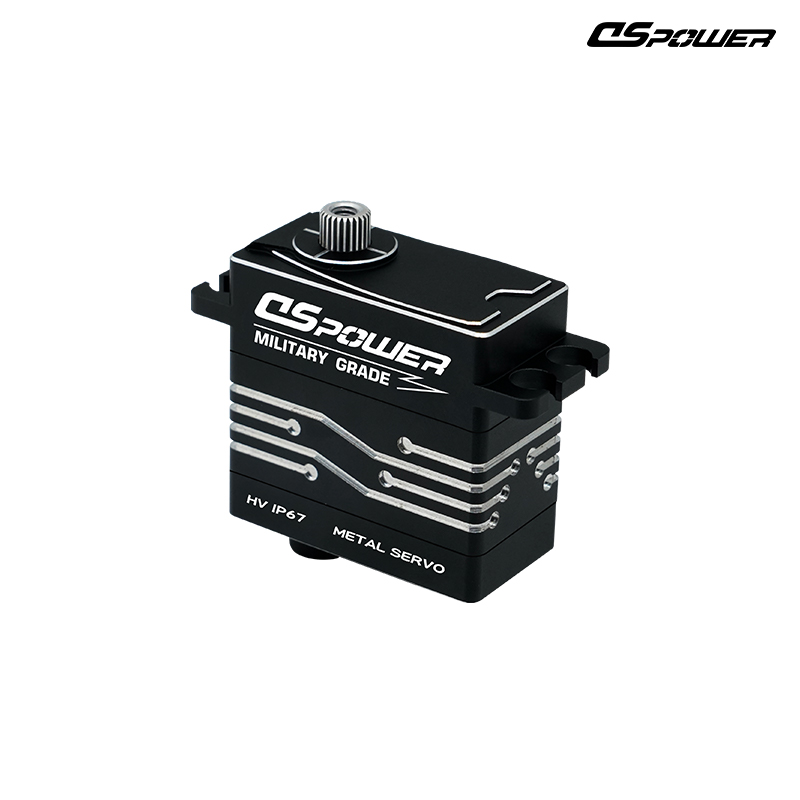

DS-W003A High-Torque IP67 Metal Servo
Product Info
| Brands | DSpower |
| Product Model | DS-W003A |
| Weight |
91.5±2.0g
|

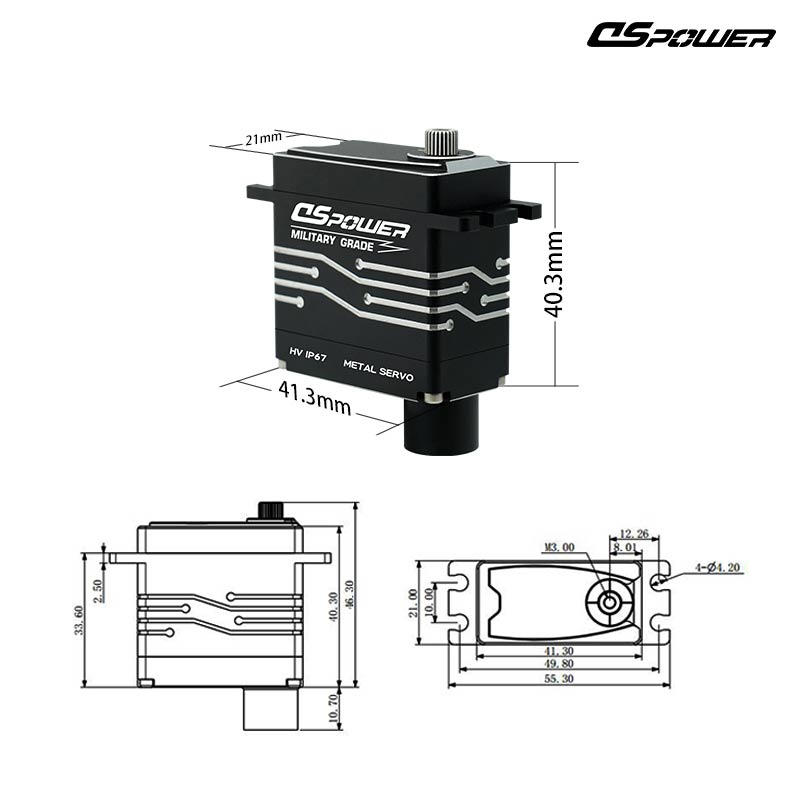

| Size | 55.3*21*46.3mm |
| Case Material | Aluminium alloy |
| Gear Type | Metal |
| Motor Type |
bushless motor
|
| Rated Voltage | 12V |
| Standby Current |
≤30mA
|
| No Load Current |
≤350mA
|
| No Load Speed |
≤0.10sec./60°
|
| Rated Torque |
10kgf.cm
|
| Stall Current | ≤3.3A |
| Stall Torque(static) | ≥40kgf.cm |
| Operating Travel Angle | 360°*n |
| Mechanical Limit Angle | unlimited |
| Protection Function | Blockage protection（STP）Over temperature protection (OTP) Over voltage protection（OVP) Over current protection (OCP) |
| Servic Support | OEM/ODM |
Need Custom Specifications?
We have a R&D team of more than 40+ people to support your project!
Product Profile
Engineered for mission-critical aerospace and industrial automation, the DS-W003A sets a new standard for extreme environment actuation. With IP67 waterproof rating and MIL-STD-810G compliance, this high-voltage brushless servo delivers precise control for UAV ailerons, underwater drones, and heavy-duty robotic systems, even in saltwater corrosion or electromagnetic interference scenarios.
Key Defense & Industrial Advantages:
✅ Battlefield-Ready Durability：Full-metal housing with anti-corrosion coating withstands sandstorms, salt spray, and submersible operations.
✅ Military-Grade Precision：Magnetic encoder provides 0.05° resolution for missile fin micro-adjustments.
✅ Multi-Protocol Flexibility：Supports CANbus/RS-485/PWM for seamless integration with NATO-standard drone controllers.
✅ SWaP-Optimized Design：High torque-to-weight ratio enables payload-critical UAV applications.
Critical Applications Include:
1、Hypersonic missile wing surface control
2、MQ-9 Reaper-style UAV aileron actuation
3、Offshore oil rig underwater inspection robots
4、EMP-shielded industrial automation arms
Highlights of Our Servos
Self-developed protection system of mechanical transmission and electric drive to utilize the best function of the servo.
Want More Technical Details?
Product Certification
Passed FCC, CE, ROHS, REACH, EMC product certification and more than 100+ patents.
Our Service Process
01 Product Requirements
→
02 Parameter Negotiation
→
03 Development Agreement
→
04 Product Design
→
05 Sample Production
→
06 Sample Verification/Feedback
→
07 Mold Making
→
08 Sample Production
→
09 Sample Verification
→
10 Program Confirmation
→
11 Specification
→
12 Sample Sealing
→
13 Mass Production
01 Product Requirements
→
02 Product Selection
→
03 Parameter Negotiation
→
04 Specification
→
05 Sample Production
→
06 Sample Verification/Feedback
→
07 Purchase Agreement
→
08 Mass Production
FAQs
A: Yes, Through 10+years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!
Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
Order less than 5000pcs, it will take 3-15 business days.
The Application of DSpower Servo Solution
Our servos can be customized to meet customer needs and are used in STEAM education, robots, model airplanes, unmanned aerial vehicles, intelligent smart home control, automation equipment, micro-mechanical control transmission and other fields.
