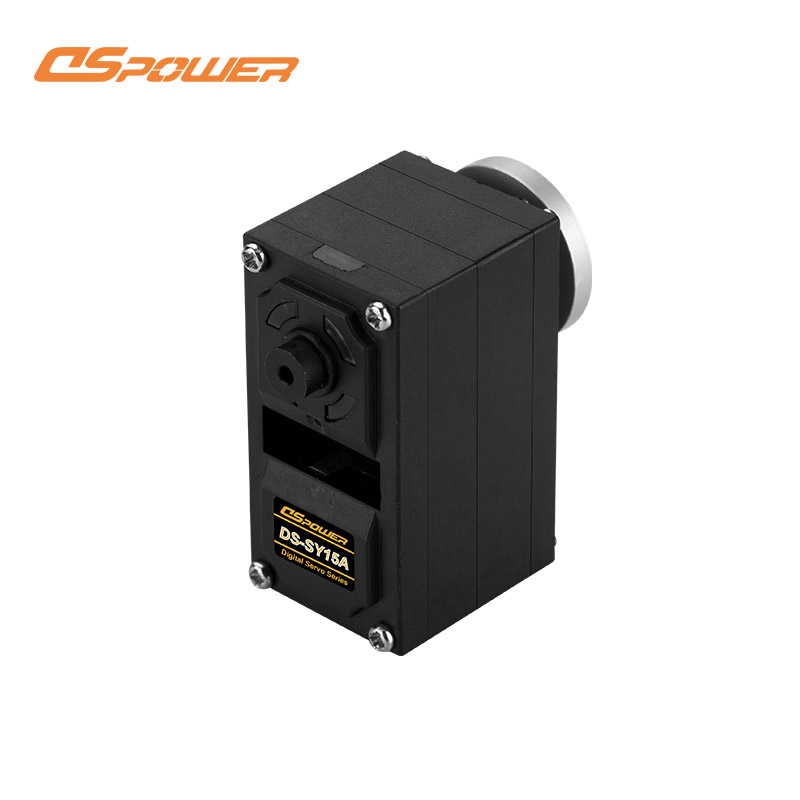

DS-SY015A 15KG Dual Shaft Metal Gear Serial Bus Servo



Operating Voltage:5.0~12.6V DC

Standby Current :≤25 mA at 7.4V

No Load Current:≤400 mA at 7.4V

No Load Speed:≤0.28 Sec/60° at 7.4V

Rated Torque:3.5 kgf.cm at 7.4V

Stall Current:≤3.2 A  at 7.4V

Stall Torque:≥15 kgf.cm at 7.4V

Pulse Width Range:0~4095

Operating Travel Angle:360°(0~4095)

Weight:50±1 g

Gear Set Material:Metal

Motor Type: Core motor


Product Detail

Product Tags

主图4







SY015A 15KG dual-axis metal gear serial bus servo is a powerful and versatile servo motor designed for precise control of position and angle in various applications. It is equipped with high-quality metal gears, providing durability and strength for heavy-duty tasks.

This servo operates on a serial bus communication protocol, allowing for easy integration into digital control systems. It communicates with the controller using a serial bus interface, enabling reliable and efficient data transmission.

incon

FEATURE:





Dual-axis design for independent control of two axes.

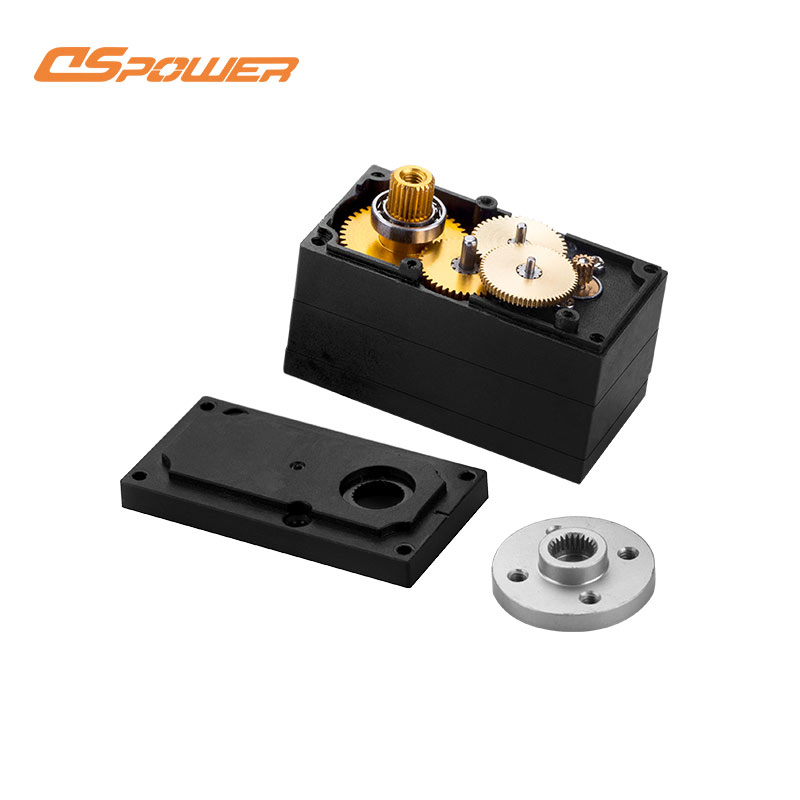

High-quality metal gears for durability and strength.
Serial bus communication protocol for easy integration.
Maximum torque of 15 kilograms for powerful performance.
Wide range of rotation for flexible positioning.
High-resolution encoder for accurate feedback.
Suitable for applications requiring precise position and angle control.

incon

Programmable Functions





  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset
incon

Application Scenarios

DS-SY15A 15KG dual-axis metal gear serial bus servo is widely used in robotics,Mechanical arms, STEAM education,industrial automation, RC models, and other fields where precise motion control is essential.  Its robust construction, advanced control features, and reliable performance make it an ideal choice for demanding applications.

incon

FAQ

Q. Can i ODM/ OEM and print my own logo on the products?

A: Yes, Through 10years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

Q. Servo Application？

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
