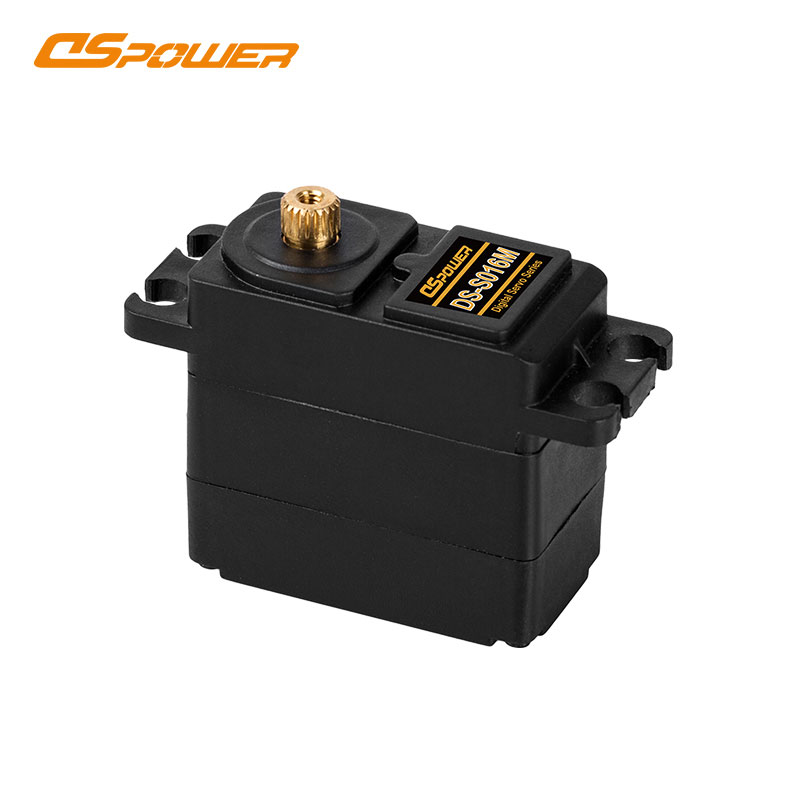

DS-S016M Metal Gear Digital Core Servo Motor for Vacuum Cleaner&Sweeping Robot

Operating Voltage:4.8-6V DC

Standby Current:≤8mA at 6.0V

No Load Current:≤180mA at 4.8V,≤190mA at6.0V

No Load Speed:≤0.12sec/60° at 4.8V,≤0.11sec/60° at 6.0V

Rated Torque:≥0.80kgf·cm at 4.8V,≥0.90kgf·cm at 6.0V

Stall Current:≤1.3mA at 4.8V,≤1.8mA at 6.0V

Stall Torque:≥2.8kgf·cm at 4.8V,≥3.0kgf·cm at6.0V

Pulse Width Range:500~2500μs

Operating Travel Angle:90°±10°(1000~2000μs)

Weight:22.5± 1g

Gear Set Material:Metal

Motor Type:Iron Core




Product Detail

Product Tags



DSpower S016M servo is a specialized servo motor designed specifically for sweeping robots and autonomous cleaning devices. It plays a crucial role in controlling the movement and operation of the cleaning mechanisms, such as brushes, suction fans, and mops.

This type of servo is engineered to meet the specific requirements of sweeping robots, which demand precise control, durability, and efficient operation. It is designed to withstand the harsh conditions encountered during cleaning tasks, including vibrations, impacts, and dust.

主图800x800-6
incon

Features

Precise Positioning: The sweeping robot servo ensures accurate positioning of the cleaning mechanisms, allowing for efficient and thorough cleaning of various surfaces.

High Torque: It delivers sufficient torque to drive the brush or other cleaning components, enabling effective removal of dirt and debris.

Compact Design: The servo is typically compact in size, allowing it to be easily integrated into the compact body of a sweeping robot without occupying excessive space.

Durability: Sweeping robot servos are built to withstand continuous operation and the demanding conditions of cleaning tasks. They are often equipped with robust gears and components to ensure long-lasting performance.

Power Efficiency: These servos are designed to operate with high energy efficiency, helping to prolong the battery life of the sweeping robot and enhance its overall cleaning efficiency.

Feedback Control: Many sweeping robot servos feature built-in position feedback sensors, such as encoders or potentiometers, that provide accurate position information for closed-loop control. This enables precise movement control and enhances the cleaning performance.

Communication Compatibility: Some sweeping robot servos support various communication protocols, such as serial bus interfaces or wireless connectivity options, allowing seamless integration with the robot's control system.

incon

Application Scenarios

DSpower S016M servo is a specialized motor that enables precise movement control and efficient cleaning operations in sweeping robots.   Its features, such as precise positioning, high torque, durability, and power efficiency, contribute to the effectiveness and reliability of modern autonomous cleaning devices.

incon

FAQ

Q. Can i ODM/ OEM and print my own logo on the products?

A: Yes, Through 10years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

Q. Servo Application?

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
