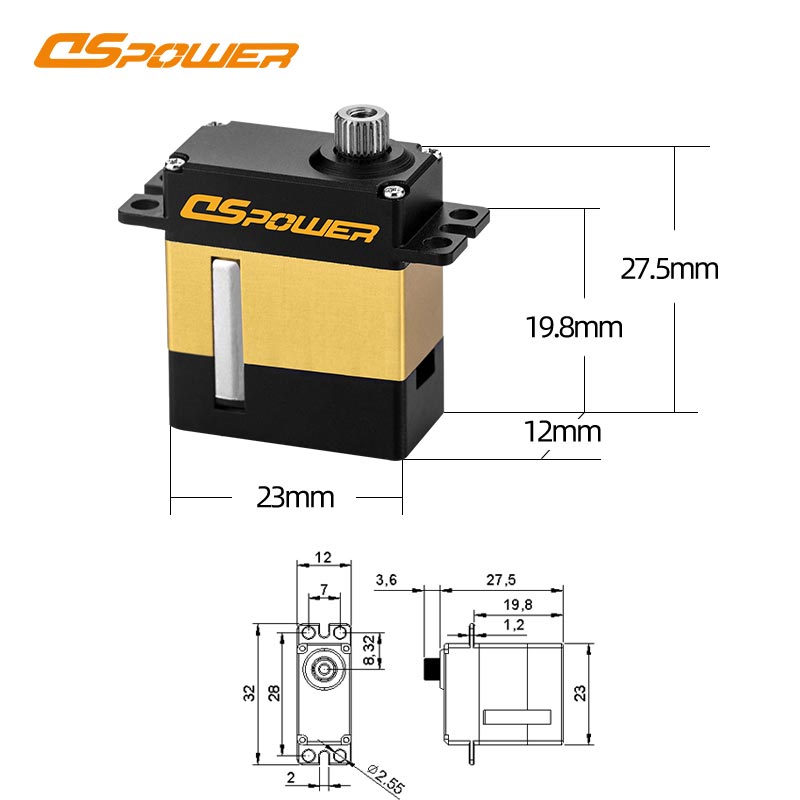

DS-S009A 6KG TTL Serial Magnetic Encoder 360° Coreless Servo

Operating Voltage:	6.0~7.4V DC
Standby Current:	≤12 mA
No Load Current:	≤160 mA at 7.4 (STD.)
No Load Speed:	≤0.09 sec/60° at 7.4 (STD.)
Stall Current:	≤2.6A at 7.4 (STD.)
Stall Torque:	≥6.0 kgf.cm at 7.4 (REF.)
Rated Torque:	1.5kgf.cm at 7.4 (STD.)
Pulse Width Range:	1000~2000us
Neutral Position:	1500us
Operating Travel Angle:	180°±10°
Mechanical Limit Angle:	360°
Angle deviation :	≤ 1°
Back Lash:	≤ 1°
Dead Band Width:	≤ 5 us (Digital PCBA)
Operating Temperature Range:	-10℃~+50℃； ≤90%RH
Storage Temperature Range:	-20℃~+60℃； ≤90%RH
Weight:	21.2 ± 0.5g
Case Material:	Metal Casing
Gear Set Material:	Metal Gear
Motor Type:	Coreless Motor

Send email to us

Product Detail

Product Tags

Product introduce

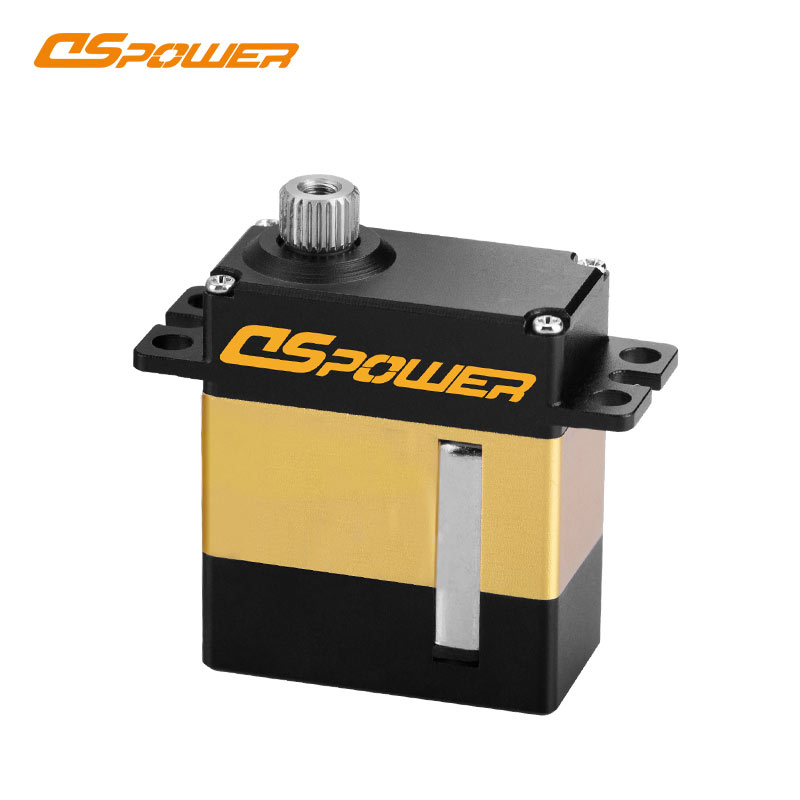

DSpower S009A is a type of slim servo that features a slim and compact design, along with a metal housing that provides increased durability and strength. These servos are commonly used in applications where space is limited, such as small robots, RC aircraft, and other devices that require precise control of movement.

The metal housing of the servo motor helps to protect the internal components from damage and provides better heat dissipation, which can help to extend the servo's lifespan. Additionally, the metal construction can provide increased resistance to impact and other external forces that could damage the servo.

Slim metal servos typically feature a high torque output and precise control, making them well-suited for a wide range of applications. They may also include features such as programmable control, feedback sensors, and other advanced capabilities to further enhance their performance and versatility.

Overall, slim metal servos are a popular choice for applications that require precise and reliable control of movement, while also requiring a compact and durable design.

Product parameters

Features:
High performance standard digital servo
High-precision Metal Gear
Long-life potentiometer
CNC aluminium case
High quality DC motor
Dual ball bearing
Waterproof

Programmable Functions:
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

Application

DS-S009A servo, also known as a micro servo, is a small servo motor with a metal outer casing. Despite its compact size, it offers durability and improved performance. Here are some scenarios where a 9g metal casing servo is commonly used:

RC aircraft: The lightweight and compact nature of a 9g metal casing servo makes it suitable for small RC airplanes, gliders, and drones. It can control various functions like ailerons, elevators, rudders, and throttle with precision.

Robotics and automation: Micro-sized robots or robotic components often utilize 9g metal casing servos for intricate movements and tight spaces. They can be employed in small robotic arms, grippers, or articulated joints.

Miniature models: These servos find applications in miniature models, such as model trains, cars, boats, and dioramas. They can control steering, throttle, or other moving parts in these scaled-down replicas.

RC cars and trucks: In smaller RC vehicles, such as 1/18 or 1/24 scale cars and trucks, a 9g metal casing servo can handle steering and other essential functions with relative ease.

DIY projects: Hobbyists and makers often incorporate 9g metal casing servos into their DIY projects, including animatronics, remote-controlled gadgets, and customized devices that require precise motion control.

Educational purposes: Due to their affordability and compact size, 9g metal casing servos are commonly used in educational settings, workshops, and STEM projects to introduce students to basic robotics and mechanics.

Overall, the 9g metal casing servo is versatile and finds its place in applications that require small, lightweight, and reliable servo motors. Its metal casing provides durability, making it suitable for environments where robustness is necessary.
