DS-S007M 21g PWM Copper Gear RC Servo Motor
Product Info
| Brands | DSpower |
| Product Model | DS-S007M |
| Weight | 21± 1g |

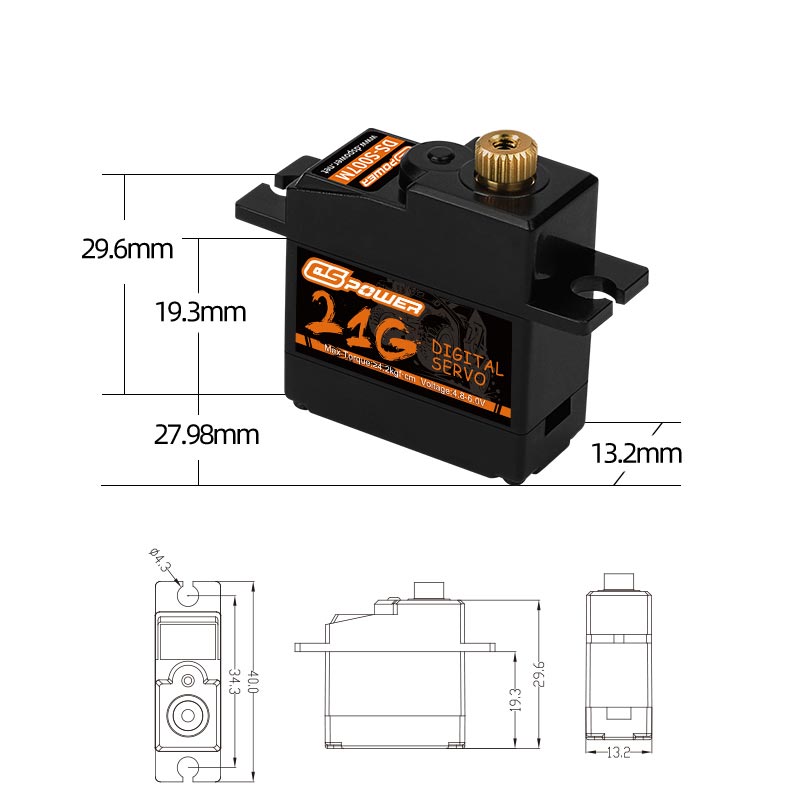

| Size | 29.6*13.2*34.3mm |
| Interface | PWM |
| Case Material | PA |
| Gear Type | Metal |
| Motor Type | Core motor |
| Rated Voltage | 4.8-6V DC |
| Standby Current | 10mA at 4.8V |
| No Load Current | ≤200mA at 4.8V; ≤210mA at6.0V |
| No Load Speed | ≤0.10 sec/60° at 4.8V; ≤0.12 sec/60° at 6.0V |
| Rated Torque | ≥1.0kgf·cm at 4.8V; ≥1.2kgf·cm at 6.0V |
| Rated Current | -- |
| Stall Current | ≤1.5A at 4.8V; ≤1.8A at 6.0V |
| Stall Torque(static) | ≥3.8kgf·cm at 4.8V; ≥4.2kgf·cm at6.0V |
| Weighting Torque(dynamic) | -- |
| Pulse Width Range | 500~2500μs |
| Operating Angle | 90°±10°(1000~2000μs） |
| Mechanical Limit Angle | 210° |
| Return Angle Deviation | ≤ 1° |
| Protection Function | -- |
| Servic Support | OEM/ODM |
Need Custom Specifications?
We have a R&D team of more than 40+ people to support your project!
Product Profile
DSpower S007M 21g digital servo Motor is a compact and versatile servo designed for radio-controlled (RC) applications where a balance between weight, precision, and reliability is essential. With its lightweight build, copper gear construction, and Pulse-Width Modulation (PWM) control capabilities, this servo is well-suited for a variety of RC vehicles and models.
RC Cars: Ideal for steering and other control mechanisms in radio-controlled cars, providing precise and responsive movements for optimal handling.
RC Boats: Suitable for controlling rudders and other components in radio-controlled boats, ensuring accurate navigation and maneuverability.
RC Airplanes: Used for aileron, elevator, and rudder control in radio-controlled airplanes, contributing to stable and controlled flight.
RC Helicopters: Applied in various control functions in radio-controlled helicopters, ensuring precise and reliable movements for a better flying experience.
Educational RC Projects: The servo is well-suited for educational projects where students learn about RC technology, electronics, and mechanics.
Custom RC Builds: Ideal for hobbyists and enthusiasts involved in custom RC vehicle builds, offering a reliable and lightweight solution for motion control.
Lightweight and Compact (21g): Weighing only 21 grams, this servo is particularly suitable for RC applications where minimizing weight is crucial for optimal performance in vehicles such as cars, boats, airplanes, and other radio-controlled devices.

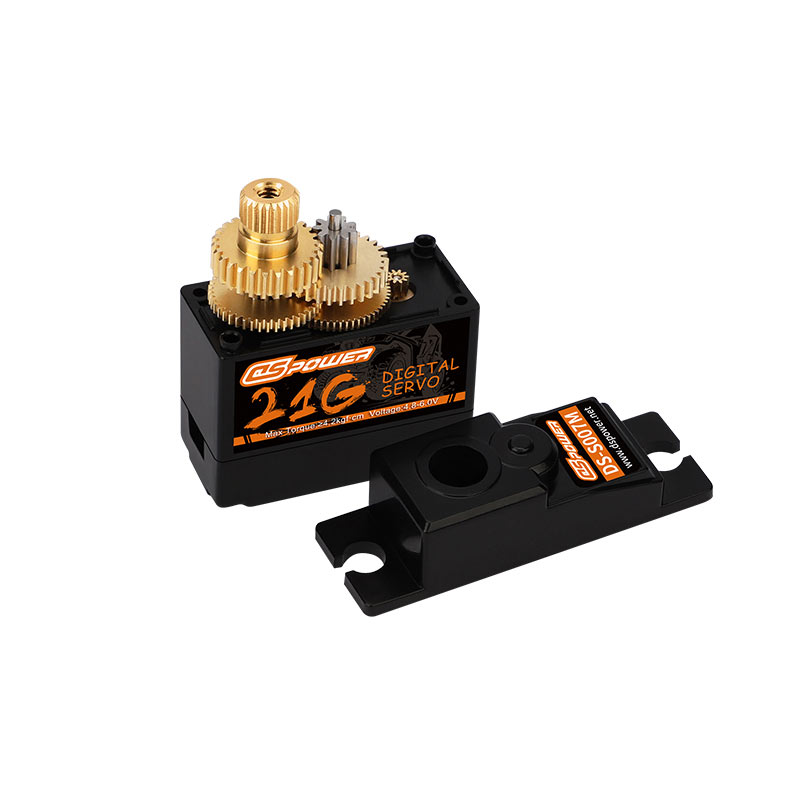

Copper Gear Design: The servo features copper gears, providing a sturdy and durable construction. Copper gears are known for their wear resistance and ability to handle moderate torque loads, making them suitable for various RC applications.
PWM Digital Control: Utilizing Pulse-Width Modulation (PWM), the servo allows for digital control, enabling precise and responsive movements. PWM is a standard control method in RC systems, ensuring compatibility with a wide range of RC controllers.
Compact Form Factor: With its small size, the servo is easily integrated into the tight spaces of RC models. The compact form factor ensures versatility and ease of installation in different RC vehicles.
Versatile Operating Voltage Range: The servo is designed to operate within a versatile voltage range commonly used in RC systems, providing flexibility for different power supply configurations.
Plug-and-Play Integration: Engineered for seamless integration, the servo is typically compatible with standard PWM control systems used in RC applications. This ensures easy control through various RC transmitters and receivers.
