DS3235 35Kg Waterproof Servo Metal Gear Digital Servo

DSpower DS3225 35KG servo is a powerful servo motor designed to provide high torque output for applications that require heavy-duty control of movement. The “35KG” refers to the maximum torque the servo can generate, which is approximately 35 kg-cm (about 487 oz-in).


Product Detail

Product Tags

High Torque Servo 35kg Metal Gear

Model:DS-R003B

High Torque / Waterproof / High-precision Metal Gear

Basic Info:Digital servo; PWM; Stall Torque: ≥35kgf.cm; Gear: Metal Gear; Core Motor.

Application Tips: Heavy-duty RC vehicles, Industrial automation,Robotic applications, Agricultural machinery, Motion control systems, etc.

Product Info

Brands DSpower
Product Model DS-R003B
Weight N/A

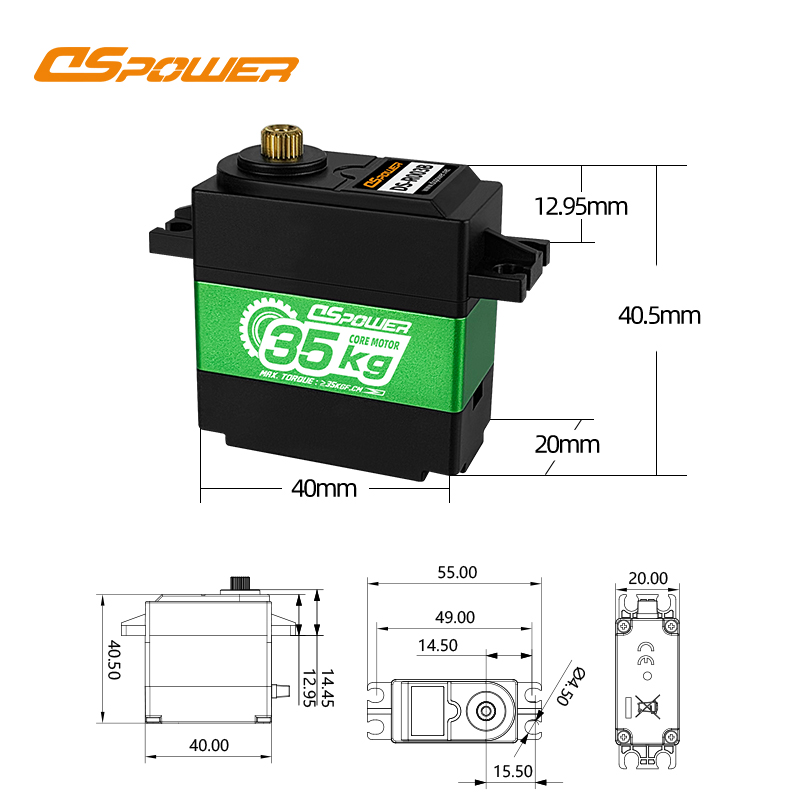

Size 40*20*42mm
Interface Digital servo;PWM
Case Material Aluminium alloy + PA66
Gear Type Metal
Motor Type Core motor
Rated Voltage 7.4V
Standby Current ≤50mA
No Load Current ≤200mA
No Load Speed ≤0.16sec./60°
Rated Torque 8.0kgf.cm
Rated Current -
Stall Current ≤5.0A
Stall Torque(static) ≥35kgf.cm
Weighting Torque(dynamic) ≥25.0kgf.cm
Pulse Width Range 500~2500μs
Operating Angle 180±10°(500~2500μs)
Mechanical Limit Angle 360°
Return Angle Deviation ≤1.0°
Protection Function Over temperature protection (OTP)
Over voltage protection(OVP)
Over current protection (OCP)
Servic Support OEM/ODM

Need Custom Specifications?

We have a R&D team of more than 40+ people to support your project!

Product Profile

Product Overview

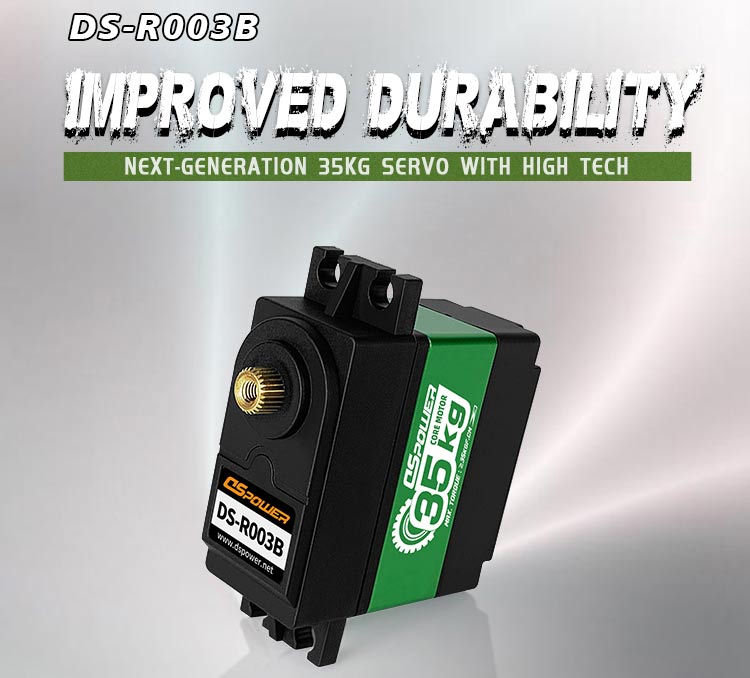

DSpower DS-R003B 35KG servo is a powerful servo motor designed to provide high torque output for applications that require heavy-duty control of movement. The "35KG" refers to the maximum torque the servo can generate, which is approximately 35 kg-cm (about 487 oz-in).

These servos are commonly used in large-scale robotics, industrial automation, and other applications that involve controlling heavy loads or require strong mechanical force. The high torque output of a 35KG servo enables it to handle tasks that demand significant power and control, such as moving large robot arms or operating heavy machinery.

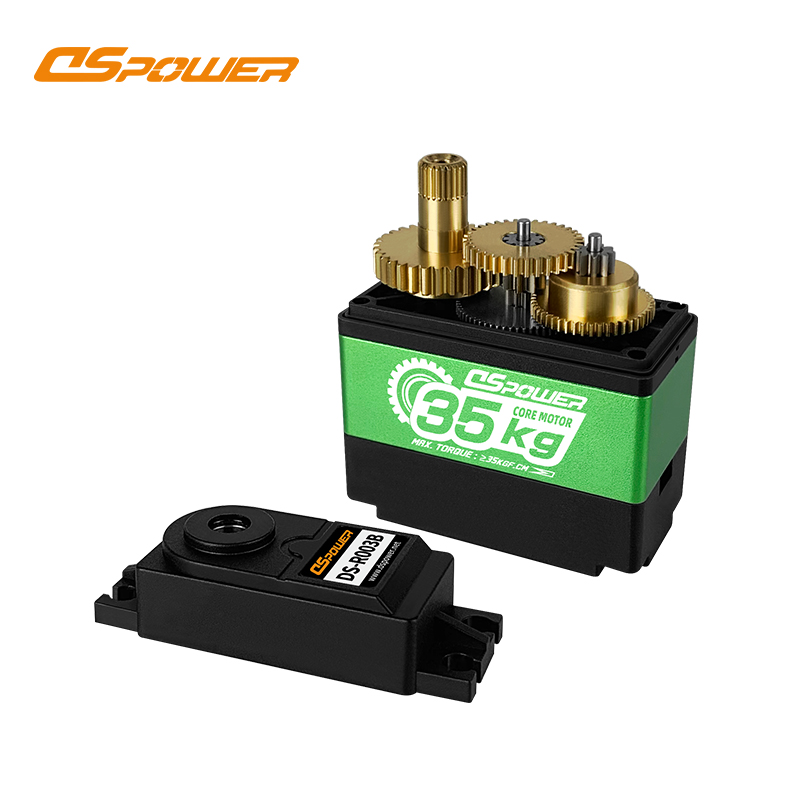

The servo motor consists of a DC motor, gearbox, and control circuitry. The control circuitry receives signals from a controller or a microcontroller that specifies the desired position or angle for the servo's output shaft. The control circuitry then adjusts the voltage and current supplied to the motor, allowing the servo to move to the desired position.

The robust construction of a 35KG servo typically includes a metal or high-strength plastic housing to withstand the higher torque and provide durability. It may also incorporate features like feedback sensors for improved accuracy and control.

It's worth noting that 35KG servos are relatively larger and heavier compared to smaller servos, so they are typically used in applications that can accommodate their size and power requirements.

In summary, a 35KG servo is a heavy-duty servo motor capable of delivering high torque output, making it suitable for applications that demand substantial power and precise control.

Application Scenarios

DS-R003B 35kg servo is a powerful servo motor capable of providing up to 35 kilograms of force or turning power. It is suitable for various applications that require exceptional torque and precision control. Here are some scenarios where a 35kg servo is commonly used:

Heavy-duty RC vehicles: 35kg servos are ideal for large-scale RC cars, trucks, and off-road vehicles that require robust steering control and handling on rough terrains.

Industrial automation: These servos find applications in industrial machinery, automation systems, and manufacturing processes that involve heavy loads and require high torque for precise movements.

Robotic applications: 35kg servos are well-suited for large robotic arms, grippers, and humanoid robots that demand significant force and precise control for lifting, gripping, and manipulating objects.

Agricultural machinery: Servos with high torque like the 35kg servo can be utilized in agricultural equipment such as large-scale robotic harvesters or automated farming systems.

Construction and heavy machinery: These servos can be employed in construction equipment, cranes, excavators, and other heavy machinery that require powerful movement control and lifting capabilities.

Motion control systems: 35kg servos are often utilized in motion control systems for precise positioning and movement in industrial and scientific applications.

In summary, the high torque and precision of a 35kg servo make it suitable for applications involving heavy loads, robust movements, and demanding control requirements across various industries, including RC, industrial automation, robotics, agriculture, construction, and motion control.

Product Features

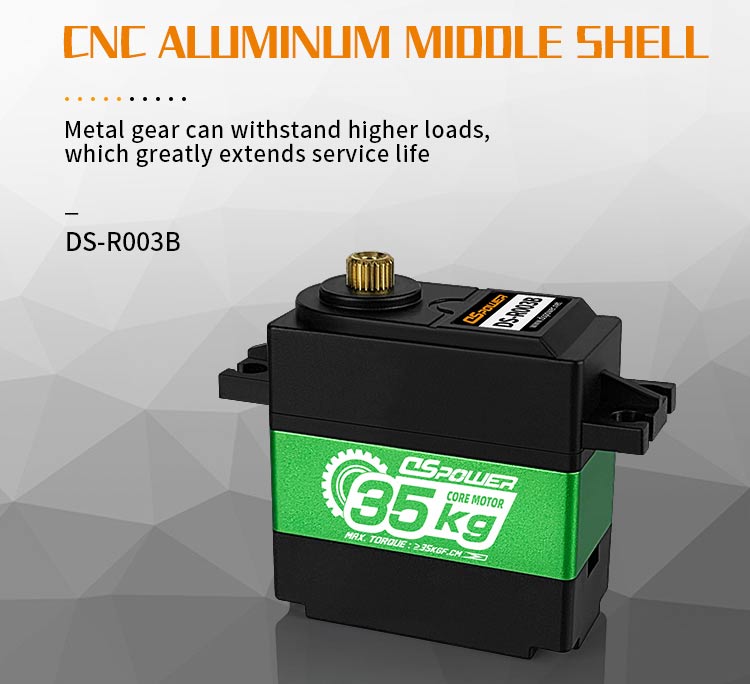

FEATURE: High performance, standard digital servo; High-precision Metal Gear; Long-life potentiometer; CNC aluminiummiddle shell; High quality DC Motor; Dual ball bearing; Waterproof

Programmable Functions:

End Point Adjustments; Direction; Fail Safe; Dead Band; Speed (faster); Data Save / Load; Program Reset



Support Custom

Highlights of Our Servos

Self-developed protection system of mechanical transmission and electric drive to utilize the best function of the servo.

Integrated and Miniaturized

Integration of control and drive, characterized by small size and high torque.

Precise Angle, Multi-position Control

The industry's first angle auto-calibration and self-calibration detection system ensures that the servo quickly recovers its factory settings.

Mature Industry Chain, High Cost Performance

Adopting the industry's advanced MIM processing technology, to achieve the ultimate cost-effective under the guarantee of high strength and longevity.

Servo with Self-protection System

With blocking protection, voltage protection, temperature protection, etc. can effectively cope with a variety of complex working conditions, reducing the risk of servo failure.

Want More Technical Details?

Contact us for more today!

Product Certification

Passed FCC, CE, ROHS, REACH, EMC product certification and more than 100+ patents.

DSpower Servo Product Certification CE
DSpower Servo Product Certification FC
DSpower Servo Product Certification MRA
ISO 14001
ISO 9001

Our Service Process

Custom Product Process
01 Product Requirements
02 Parameter Negotiation
03 Development Agreement
04 Product Design
05 Sample Production
06 Sample Verification/Feedback
07 Mold Making
08 Sample Production
09 Sample Verification
10 Program Confirmation
11 Specification
12 Sample Sealing
13 Mass Production
Standard Product Process
01 Product Requirements
02 Product Selection
03 Parameter Negotiation
04 Specification
05 Sample Production
06 Sample Verification/Feedback
07 Purchase Agreement
08 Mass Production

FAQs

Can I ODM / OEM and Print My Own Logo on The Products?

A: Yes, Through 10+years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

How do I Know if Your Servo are Good Quality?

Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.

For a Customized Servo, How Long is The R&D Time (Research& Development time)?

Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.

How Long Can I Take My Servo?

Order less than 5000pcs, it will take 3-15 business days.

The Application of DSpower Servo Solution

Our servos can be customized to meet customer needs and are used in STEAM education, robots, model airplanes, unmanned aerial vehicles, intelligent smart home control, automation equipment, micro-mechanical control transmission and other fields.

About DSpower

DSpower was founded in May, 2013. The main R & D production and sales of servos, micro-servos, etc. We have more than 500+ employees, including more than 40+ R&D personnel, more than 30 quality inspection personnel, with more than 100+ patents; IS0:9001 and IS0:14001 certified enterprises. The maximum daily production capacity is more than 50,000 pieces.

What Sets Our Factory Unique?

10+ years experience, self-developed protection system, automated production, professional customized support

Unique Quality Inspection Equipment.

We have advanced CMM testing equipments, exclusive developed clutch structure testing equipments, spectral analyzing instruments and other routine testing equipments to ensure that the quality of our products meets high quality standards.

More Than 40+ R&D Team Support Customization

We have an experienced R&D team of more than 40 members to provide full technical support from prototype customization to mass production of micro servos for our customers worldwide. After more than 10 years of development, our team has been awarded more than 100+ patents.

Automated Production

Our factory has more than 30 production lines, with many intelligent equipments such as Japan HAMAI CNC type automatic hobbing machine, Japan Brother SPEEDIO high-speed drilling and tapping CNC machining center, Japan imported NISSEI PN40, NEX50 and other high-precision injection molding machines, automatic shaft pressing machine, and center shaft into the shell machine. The daily output is up to 50,000 pieces and the shipment is stable.

International Certification & High Quality

Passed FCC, CE, ROHS, REACH, EMC product certification and more than 100+ patents.
