DS-M005 2g mini servo micro servo

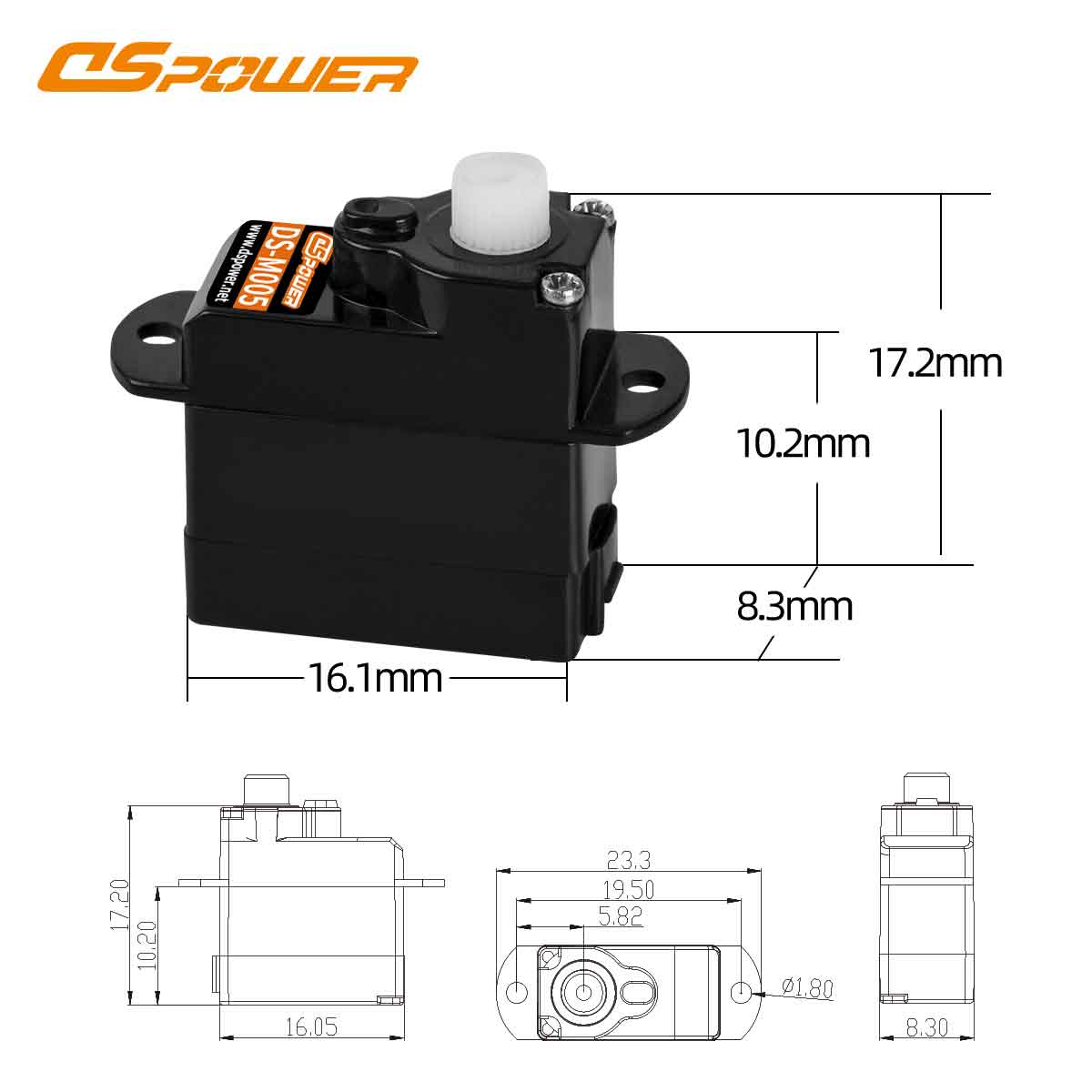

Dimension 16.7*8.2*17mm(0.66*0.32*0.67inch) ;
Voltage 4.2V (2.8~4.2VDC);
Operation torque ≥0.075kgf.cm (0.007N.m);
Stall torque ≥0.3kgf.cm (0.029N.m);
No load speed ≤0.06s/60°;
Angel 0~180 °(500~2500μS);
Operation current   ≥0.087A;
Stall current ≤ 0.35A;
Back lash ≤1°;
Weight ≤ 2g (0.07oz);
Communication Digital servo;
Dead band ≤ 2us;
Position sensor VR (200°);
Motor Coreless motor;
Material PA casing; PA gear (Gear ratio 242:1);
Bearing 0pc Ball bearing;
Waterproof IP4;

Product Detail

Product Tags

DS-M005 2g PWM Plastic Gear Digital Servo is a compact and lightweight servo motor designed for applications that require precise control and motion in a small form factor. With a weight of only 2 grams, it is one of the lightest servo motors available, making it ideal for projects where weight and size constraints are critical.

The servo utilizes digital control technology, which enables accurate and responsive positioning. It accepts PWM (Pulse Width Modulation) signals commonly used in microcontroller and robotics applications, making it easy to integrate into various electronic projects.

Despite its small size, the servo is equipped with plastic gears that allow for smooth and efficient operation. The plastic gear construction helps reduce weight while maintaining sufficient strength for many low-load applications. However, it's essential to note that plastic gears may not be as durable as metal gears, so it is best suited for projects that do not involve heavy loads or high-impact movements.

Due to its miniature size and precision control, the 2g PWM Plastic Gear Digital Servo is commonly used in micro-robotics, small-scale UAVs (Unmanned Aerial Vehicles), lightweight RC (Radio Control) aircraft, and other compact projects where precise movement and low power consumption are essential.

Overall, this servo motor provides an excellent balance of small size, low weight, and accurate performance, making it a popular choice for miniaturized and weight-sensitive electronic applications.

Ds-m005 Mini Servo3
incon

Application

FEATURE:

High performance digital servo.

High-precision gear.

Long-life potentiometer.

High quality coreless motor.

Waterproof.









Programmable Functions

End Point Adjustments.

Direction.

Fail Safe.

Dead Band.

Speed (Slower).

Data Save / Load.

Program Reset.



incon

Application Scenarios



DSpower M005 2g PWM Plastic Gear Digital Servo is particularly suitable for applications where size, weight, and precise control are critical factors. Some of the common scenarios where this type of servo motor finds application include:

  1. Micro Robotics: The servo's small size and lightweight make it an ideal choice for micro-robotics projects, where space is limited, and weight must be minimized for efficient operation.
  2. Miniature RC Aircraft and Drones: It is commonly used in small-scale remote-controlled aircraft, drones, and quadcopters, where weight directly impacts flight performance and battery life.
  3. Wearable Devices: The servo's compact form factor makes it suitable for wearable technology applications, such as small robotic components integrated into wearable devices or smart clothing.
  4. Tiny Mechanical Systems: It can be used in miniature mechanical systems, such as small-scale grippers, actuators, or sensors, where precise motion control is required in a limited space.
  5. Educational Projects: Due to its lightweight and ease of use, the servo is popular for educational purposes, especially in STEM (Science, Technology, Engineering, and Mathematics) projects and robotics workshops.
  6. Camera Accessories: The servo can be employed in miniaturized camera gimbals, pan-tilt systems, or camera sliders to achieve controlled camera movements for photography and videography.
  7. Art and Animatronics: It finds application in art installations and animatronics projects that require small, lifelike movements in sculptures or artistic displays.
  8. Aerospace and Satellites: In certain specialized lightweight aerospace applications or CubeSat missions, where every gram matters, the servo can be used for specific actuation tasks.

It's important to note that due to its small size and plastic gear construction, this servo is best suited for low-load applications that do not require heavy lifting or high-torque tasks. For heavier applications, larger servos with metal gears might be more appropriate.

product_3
incon

FAQ

Q: What certifications do your servo has?

A: Our servo have FCC, CE, ROHS certification.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
