2022 Latest Design Large Servo Motor - DS-R003-C Stainless Steel Gear Servo – Desheng


Product Detail

Product Tags

Related Video

Feedback (2)

We purpose to understand high quality disfigurement with the output and supply the top service to domestic and overseas buyers wholeheartedly for Mg90s Micro Servo , Fs90r Servo Motor , Micro Servo , We have been wanting forwards to creating long-term company interactions with around the world shoppers.
2022 Latest Design Large Servo Motor - DS-R003-C Stainless Steel Gear Servo – Desheng Detail:

Ds-r003-c Stainless Steel Gear2
Ds-r003-c Stainless Steel Gear3
Ds-r003-c Stainless Steel Gear5
incon

Product parameters

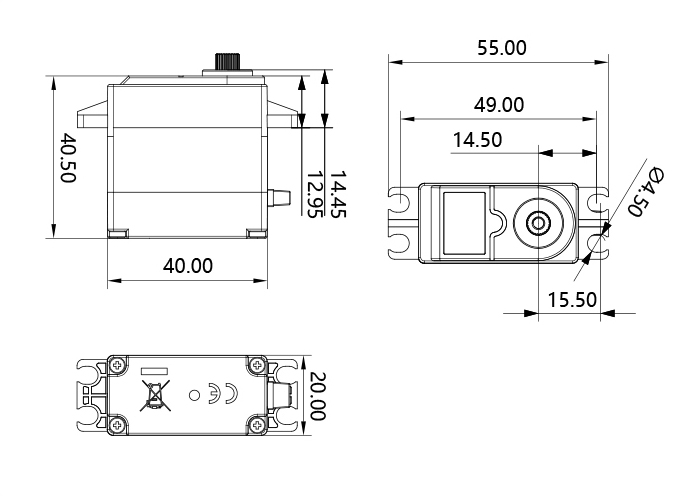

Dimension

40.3*20.3*51.2mm(1.58*0.80*2.01inch) ;

Voltage

7.4V (6~7.4VDC);

Operation torque

≥5kgf.cm (0.49N.m);

Stall torque

≥20kgf.cm (1.96N.m);

No load speed

≤0.18s/60°;

Angel

0~180 °(500~2500μS);

Operation current

≥1.05A;

Stall current

≤ 4.2A;

Back lash

≤1°;

Weight

≤ 60g (2.11oz);

Communication

Digital servo;

Dead band

≤ 2us;

Position sensorVR (200°);



Motor

Core motor;

Material

PA casing;Brass gear (Gear ratio 315:1);

Bearing

2pc Ball bearing;

Waterproof

IP4;




ds-r003

incon

Features

incon

Application Scenarios

For with Remote Control Helicopters,Airplane, Robot, Boats,Robot Arm and Smart home. Support All Kind of R/C Toys and Arduino Experiments.

product_3
incon

FAQ

Q: What certifications do your servo has?

A: Our servo have FCC, CE, ROHS certification.

Q: For a customized servo, how long is the R&D time (Research& Development time)?

A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.

Q. Can i ODM/ OEM and print my own logo on the products?

A: Yes, Through 10years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!

Q. Servo Application?

A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.
